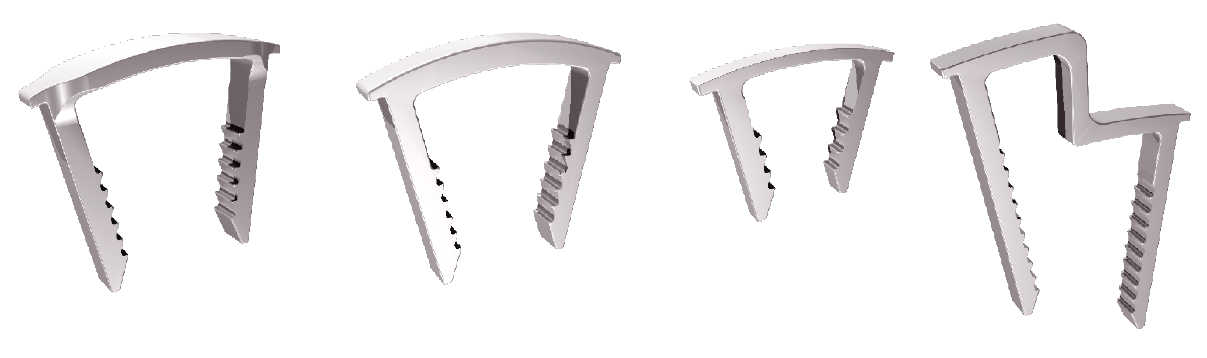

DynaFORCE® MotoClip®Max & HiMAX Clips

Continuous Compression Implants
VIEW BROCHURESCHEDULE A LAB

Product Features

Nitinol

Super-elastic Nitinol composition.

Optimized Fixation

Teeth provide  fixation as well as high pull-out strength.

 Continuous Compression

Bridge geometry for optimal compression.

Ability to Reposition

Wings allow for top-loading flush to bone insertion and for re-engaging the clip.

Wide Legs

Wide legs for optimal space compression force distribution.

Instrumentation



DynaFORCE® Clips come with sterile packed stainless steel instrumentation. Inserters are pre-loaded with implants for each surgery.

Clip Drill Guide Instrument HiMAX/MC Max Clip Inserter

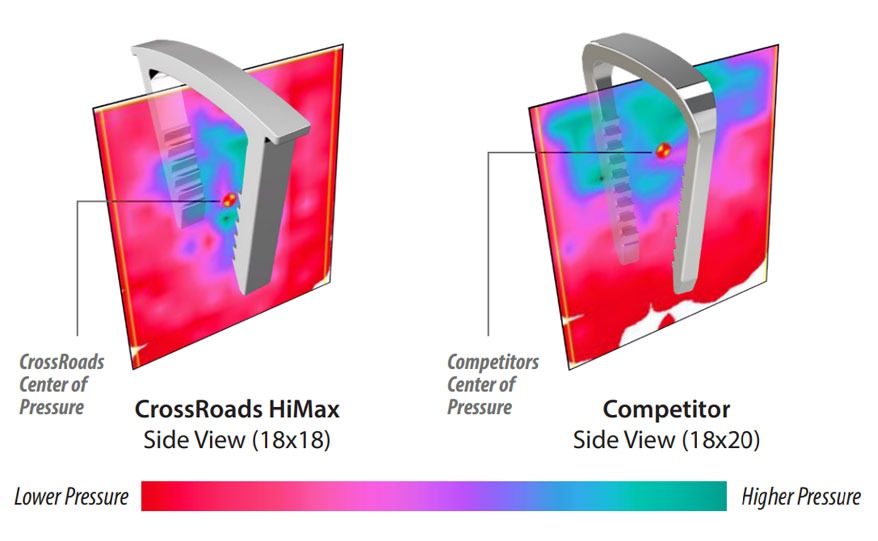

Improved Compression



Pressure maps demonstrate how compression is distributed across the fusion site.

The DynaFORCE® clip shows more bony contact than the leading competitor.*

*data on file

Improved Gap Recovery



DynaFORCE® clips showed full gap recovery at both 1 and 100 cycles.*

Initial Gap With Load vs. Gap with No Load

*data on file

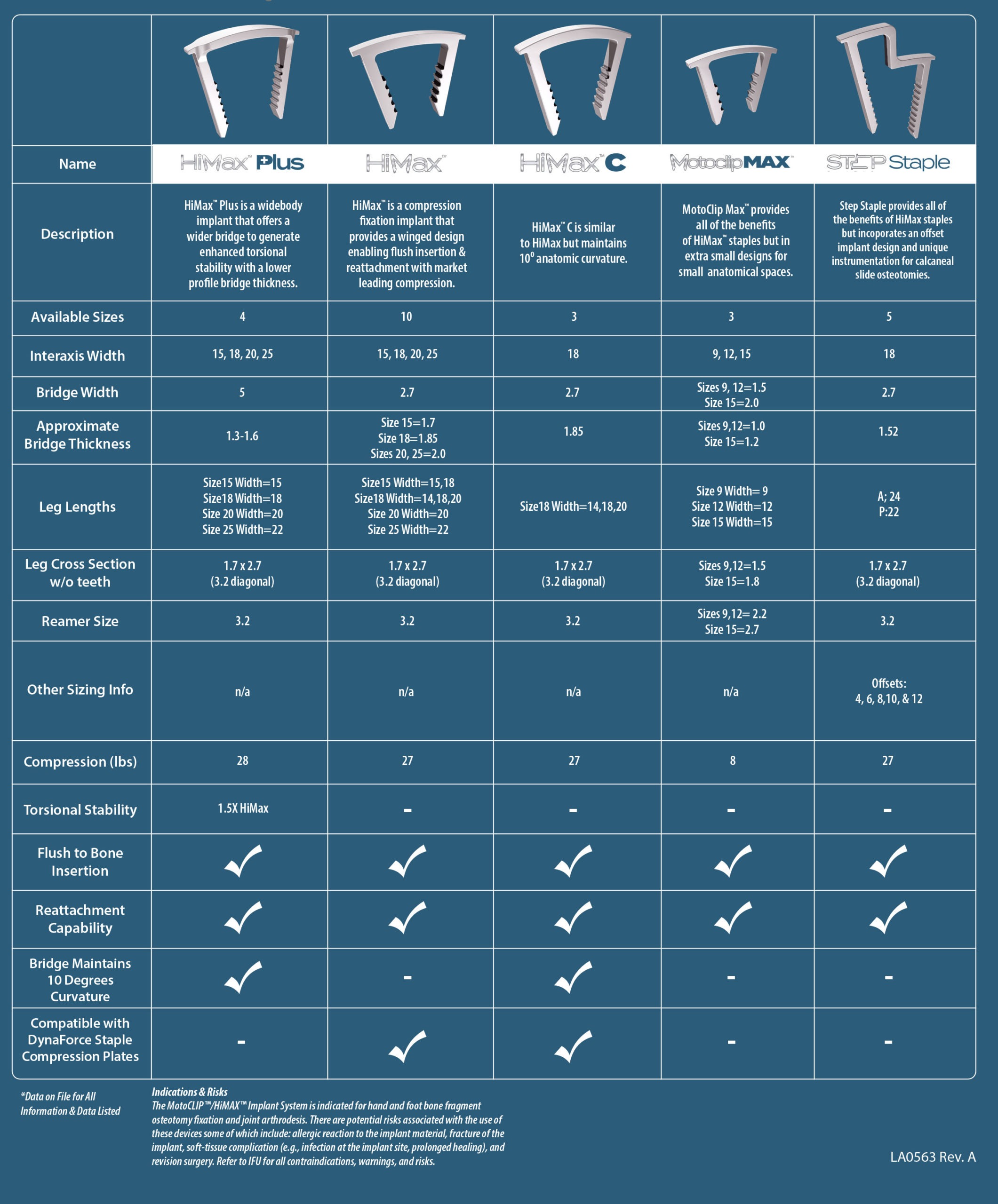

Implant Specifications

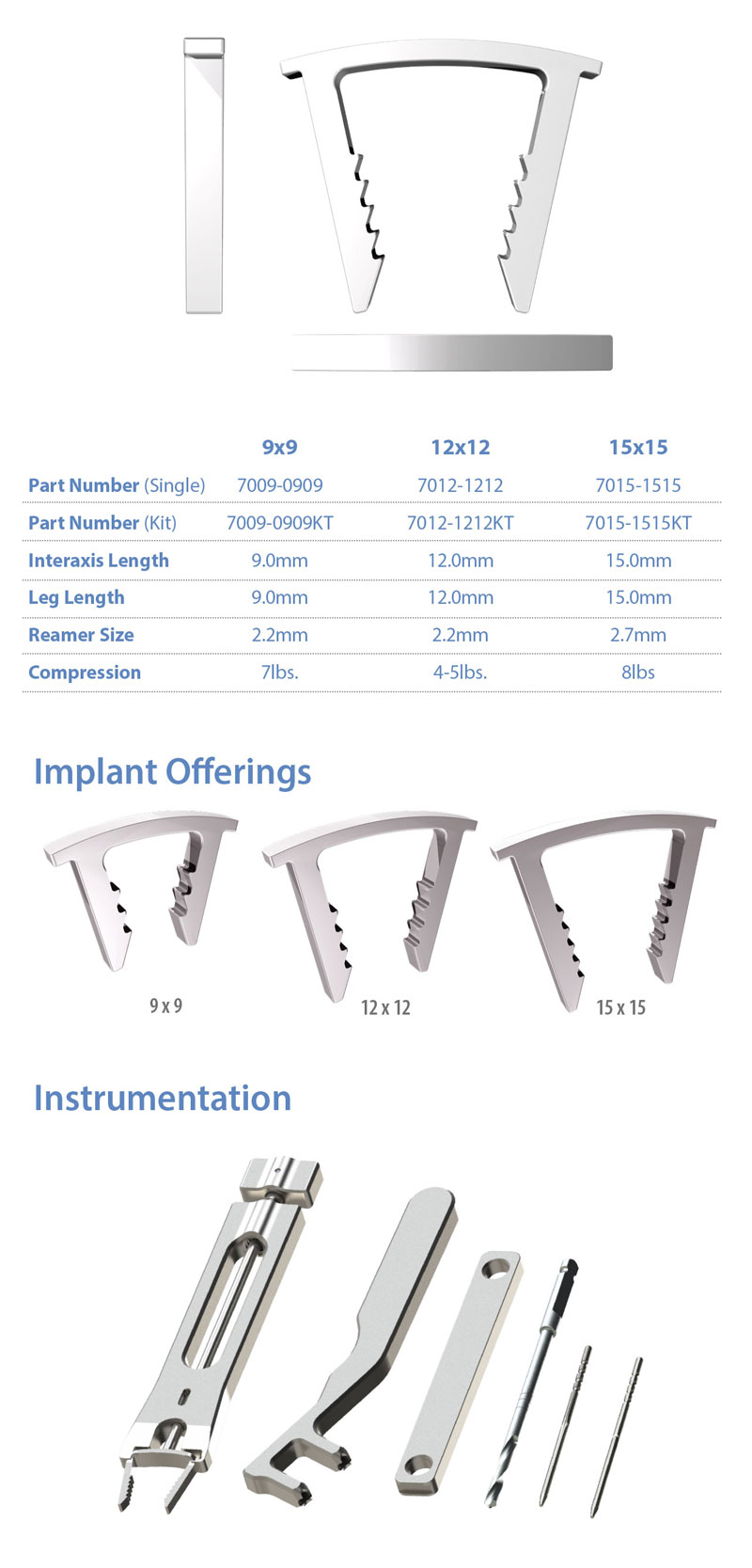

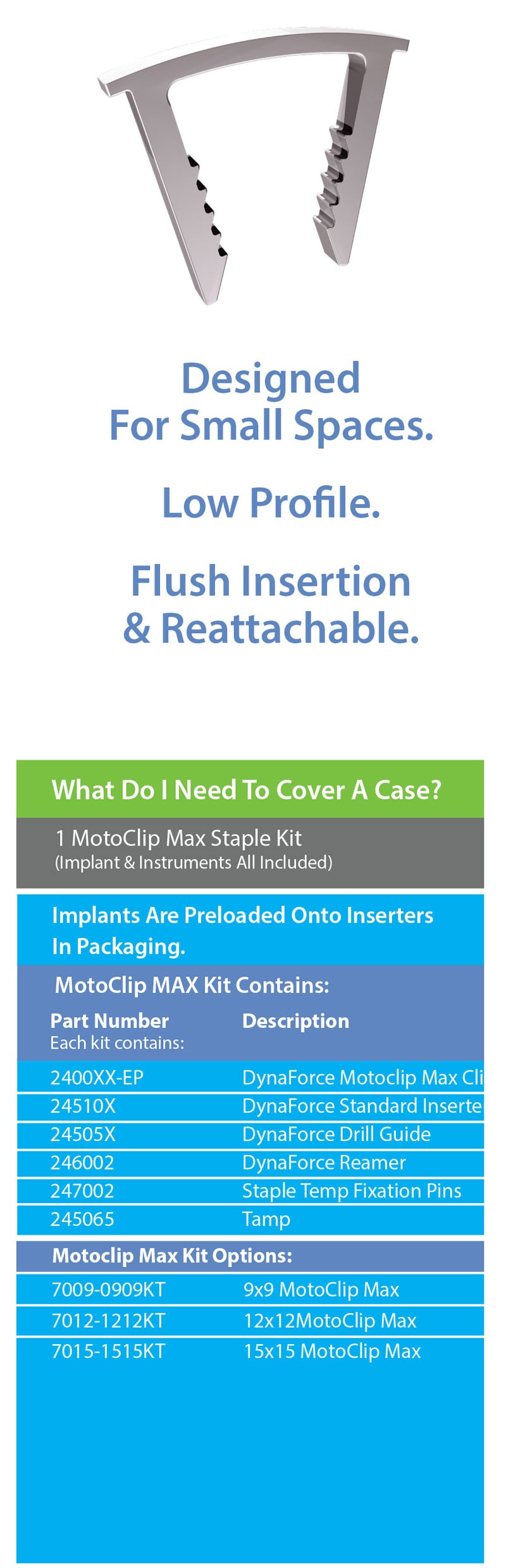

9×9 MotoCLIP® MAX Implant

Forefoot

12×12 MotoCLIP® MAX Implant

Forefoot

Interaxis Length 9mm
Leg Length 9mm
Reamer Size 2.2mm
Interaxis Length 12mm
Leg Length 12mm
Reamer Size 2.2mm
15×15 MotoCLIP® MAX Implant

Forefoot

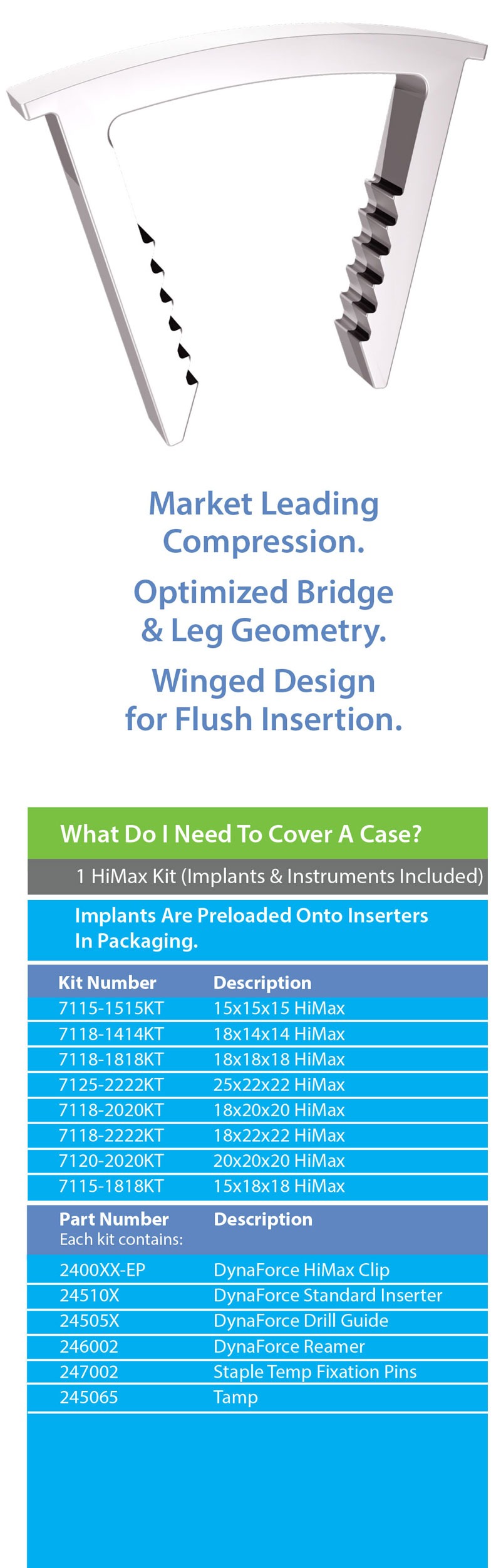

15×15 HiMAX Implant

Midfoot/Rearfoot

Interaxis Length 15mm
Leg Length 15mm
Reamer Size 2.7mm
Interaxis Length 15mm
Leg Length 15mm
Reamer Size 3.2mm
15×18 HiMAX Implant

Midfoot/Rearfoot

18×14 HiMAX Implant

Midfoot/Rearfoot

Interaxis Length 15mm
Leg Length 18mm
Reamer Size 3.2mm
Interaxis Length 18mm
Leg Length 14mm
Reamer Size 3.2mm
18×18 HiMAX Implant

Midfoot/Rearfoot

18×20 HiMAX Implant

Midfoot/Rearfoot

Interaxis Length 18mm
Leg Length 18mm
Reamer Size 3.2mm
Interaxis Length 18mm
Leg Length 20mm
Reamer Size 3.2mm
20×20 HiMAX Implant

Midfoot/Rearfoot

25×22 HiMAX Implant

Midfoot/Rearfoot

Interaxis Length 20mm
Leg Length 20mm
Reamer Size 3.2mm
Interaxis Length 25mm
Leg Length 22mm
Reamer Size 3.2mm
